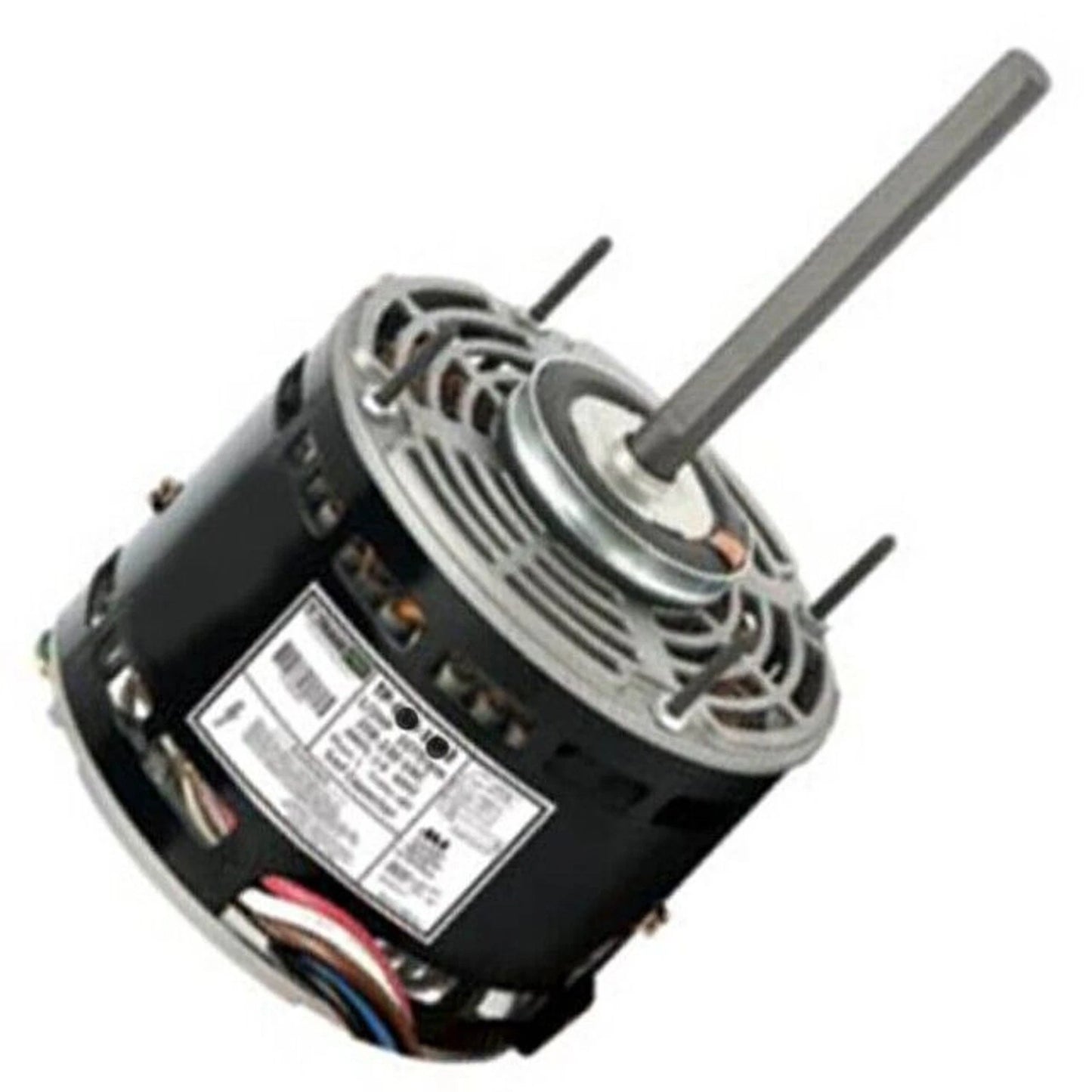

Trade Pro electric motor model TP-E75-MHP1

CARRIER TP-E75-MHP1 115v Multi HP (1/5-¾) Blower Motor

Replaces: TPE75-MHP1, TP-E75MHP1, TPE75MHP1

Description

TRADEPRO® motors are 100% functionally tested during manufacturing and then retested after final assembly for everything from input power to Hi-Pot and continuity testing. For those who prefer a fixed fractional design, TRADEPRO® fixed fractional motors offers the same ideal combination of heavy duty construction and rugged durability you'd expect from the TRADEPRO® brand.

• Universal fixed fractional condenser motor
• 115V
• Single phase
• 7.3 amp draw
• Speeds - 800, 950, 1075
• 48Y frame
• 5" keyed shaft
• 1/2" diameter
• 10MF 370 or 440V capacitor
• Side shell mount is pre-drilled to accept mount wings and resilient mount wings
• Dynamic self-aligning bearing with reversible direction

Specifications
Weight......20 Pounds (lbs)
Width......5.625 Inches (In)
Height......5.625 Inches (In)
Country of Origin......MEX
Length......7.152 Inches (In)
Amps......8.1
Bearing Type......Ball
Brand......TRADEPRO®
Capacitor MFD µF......20
Cycle/Hertz......60 Hz
Duty......Continuous
Enclosure......Open Air Over (OPAO)
Full Load Amps......8.1
Insulation Class......Class B
Lead Length......36"
Motor HP......3/4 HP
Motor Type......PSC
NEMA Frame......48Y
Number of Bearings......2
Number of Poles......6
Number of Speeds......Four
Phase......Single
Prop 65......No
Protection......Automatic
Rotation......Counter-Clockwise
RPM......1075
Service Factor......1.0
Shaft Diameter......1/2"
Shaft Length......5"
Thermal Protection......Yes
Voltage......115 VAC
