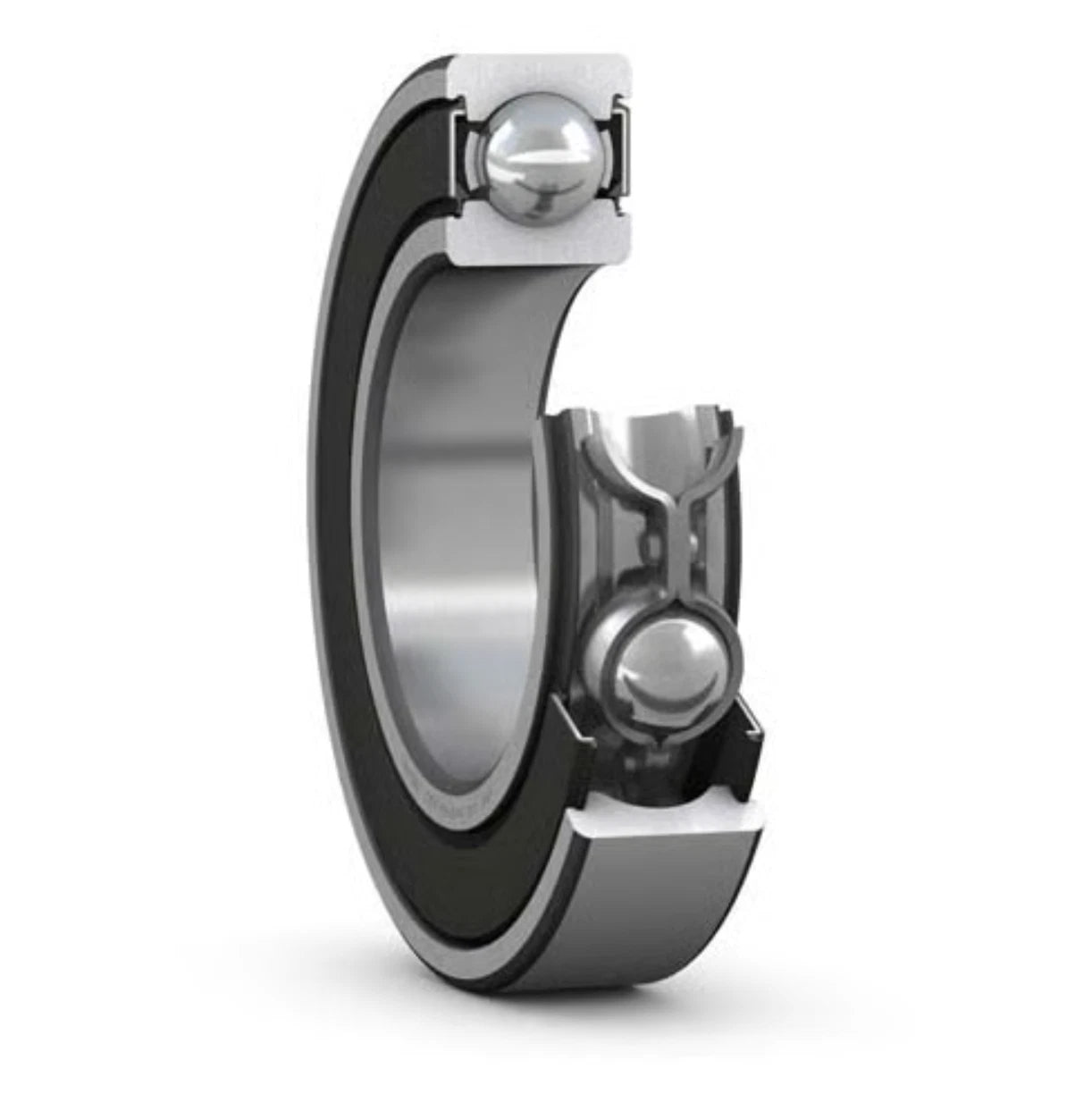

SKF 6204-2RSH Radial/Deep Groove Ball Bearing 20 mm ID, 47 mm OD, 14 mm Width

The SKF 6204-2RSH Radial/Deep Groove Ball Bearing is a high-quality bearing designed for various industrial applications. With a bore diameter of 20 mm and outer diameter of 47 mm, it offers a reliable and stable performance. The bearing is designed with a width of 14 mm, ensuring optimal clearance and support for the balls, resulting in a longer lifespan and improved efficiency. As a trusted brand in the industry, SKF guarantees the performance and durability of this bearing for your mechanical power transmission and industrial automation needs.

• Bore Type
  Straight
• Bore Diameter
  20 mm
• Outside Diameter
  47 mm
• Overall Width
  14 mm
• Closure Type
  Double Sealed
• Snap Ring Included
  Without Snap Ring
• Bearing Material
  Bearing steel
• Cage Material
  Bearing steel
• Cage Type
  Sheet metal
• Description
  6204-2RSH BRG
• Element Material
  Bearing steel
• Fillet Radius
  1 mm
• Finish Coating
  Uncoated
• Height
  0.7
• Inner Ring Width
  14 mm
• Internal Clearance
  CN
• Length
  2.1
• Manufacturer Catalog Number
  6204-2RSH
• Features & Benefits
  • Deep groove ball bearing
• Max Rpm
  10000 rpm
• Operating Temperature Range
  -40 to +210 °F
• Precision Rating
  ABEC 3
• Radial Dynamic Load Capacity
  3035 lbf
• Radial Static Load Capacity
  1472 lbf
• Seal Material
  Nitrile Rubber
• Series
  62
• Weight
  0.25, 0.25 lbs
• Width
  2.3
• Product Type
  Radial & Deep Groove Ball Bearings
