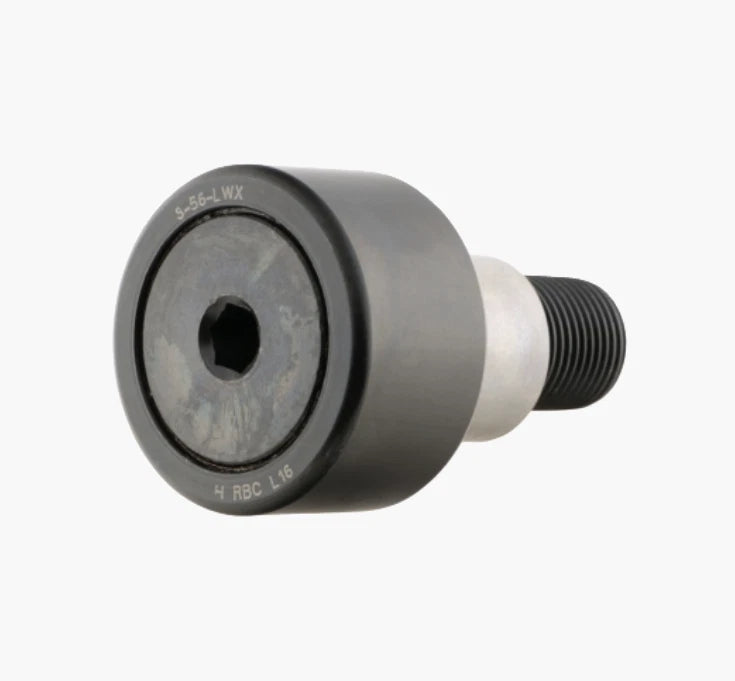

RBC Bearings CamCentric Stud Roller S56LWX
RBC Bearings CamCentric Stud Roller S56LWX
Regular price
$34.99 USD
Regular price
$49.90 USD
Sale price
$34.99 USD
Unit price
per
Low stock: 4 left
Couldn't load pickup availability
- Limited Time Offer
Best Seller
Fast Shipping
Thread Length 0.875 in, 22.225 mm
Stud Type Standard
Series CamCentric®
Static Load Rating 12400 lbf, 55157.928 N
Type Stud Roller
Dynamic Capacity 5800 lbf
Limiting Speed 2600 rpm
Style Hex Head, Sealed, Eccentric Bushing
Head Type Hex
Housing Bore 1 in
Material 52100 Bearing Quality Steel
Lubrication Type Hex Head, Stud Side, Stud End
Eccentricity 0.03 in
Hex Size 5/16 in
Stud Length 1.75 in, 44.45 mm
Roller Type Cylindrical
Static Capacity 12400 lbf
Outside Ring Shape Cylindrical
Roller Material Chrome Steel
Lube Fitting Size 3/16 in
Overall Length 2.78125 in
Thread Size 3/4-16
Finish Black Oxide
Bearing Type Needle Roller Cam Follower
Thread Pitch N/A
Threads per Inch 16
RPM [Max] 2600 rpm
Clamp Torque 750 lbf
Dynamic Load Rating 6400 lbf
Stud Material Chrome Steel
Track Capacity (40 HRC) 4550 lbf
Inch/Metric Inch
End Type Hex Hole
Operating Temperature [Max] 250 ⁰F
Stud Dia. 1 in, 25.4 mm
Enclosure Sealed
Thread Type UNF
O.D. 1.75 in, 44.45 mm
Roller Width 1 in, 25.4 mm
Roller Dia. 1.750 in
Weight 0.89 LB
EAN or UPC 637400008062
