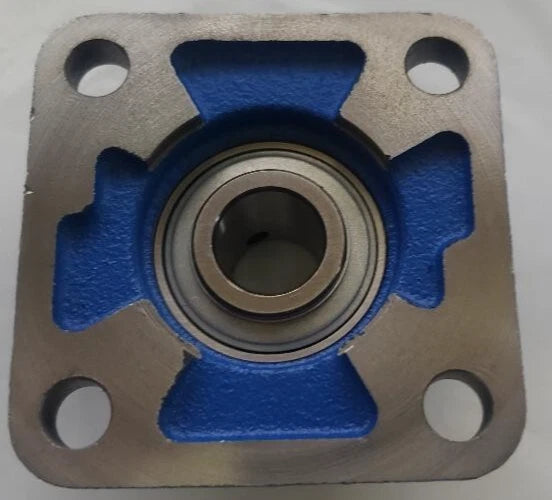

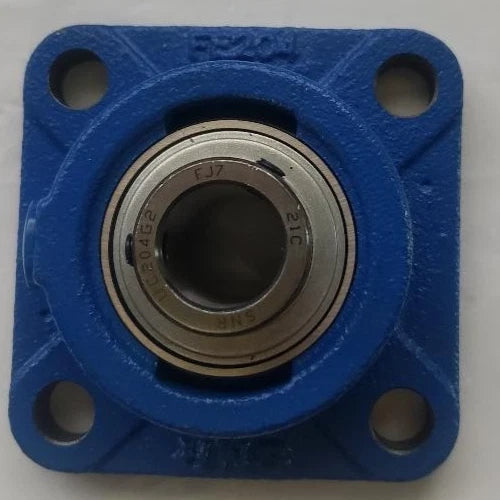

NEW SNR FE204 UC204G2 Bearing with Housing FREE SHIPPING
NEW SNR FE204 UC204G2 Bearing with Housing FREE SHIPPING
Regular price
$29.99 USD
Regular price
Sale price
$29.99 USD
Unit price
per
Low stock: 1 left
Couldn't load pickup availability
- Limited Time Offer
Best Seller
Fast Shipping

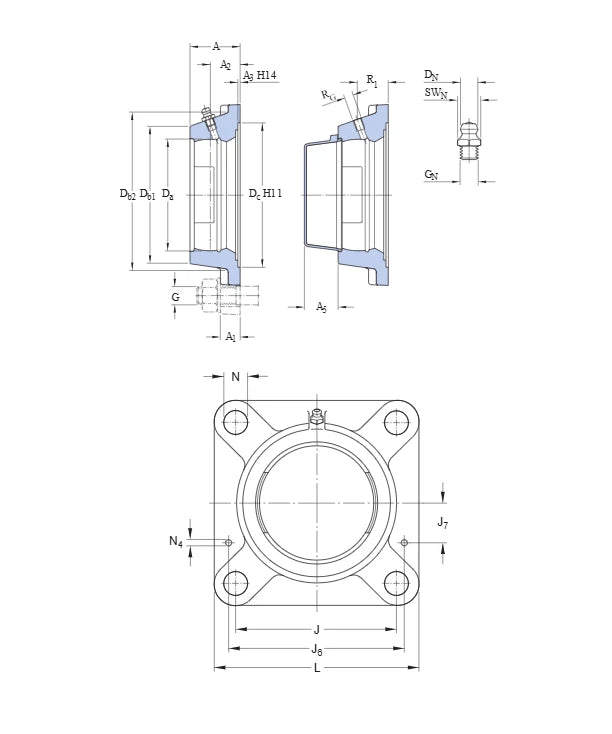

Dimensions
| Da | 90 mm |
Diameter of spherical seat |
|---|---|---|
| Db1 | 107 mm |
Top external diameter |
| Db2 | 118 mm |
Base external diameter |
| Dc | 125.4 mm |
Centring diameter |
| A | 43 mm |
Overall width |
| A1 | 15 mm |
Flange width |
| A2 | 28 mm |
Axial position of spherical seat (from support surface) |
| A3 | 3.2 mm |
Depth of centring recess |
| A5 | 33 mm |
Standout of end cover |
| J | 111 mm |
Distance between attachment bolts |
| L | 143 mm |
Overall length |
| N | 18 mm |
Diameter of attachment bolt hole |
| RG | 1/4-28 UNF |
Housing thread for grease fitting |
|---|---|---|
| R1 | 28.5 mm |
Axial position of the housing thread |
| DN | 6.5 mm |
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN | 7 mm |
Hexagonal key size for the grease fitting |
| GN | 1/4-28 SAE-LT |
Thread of the grease fitting |
| J6 | 129 mm |
Distance of dowel pins |
|---|---|---|
| J7 | 35.5 mm |
Axial offset of dowel pins |
| N4 | 4 mm |
Recommended diameter for dowel pins |
