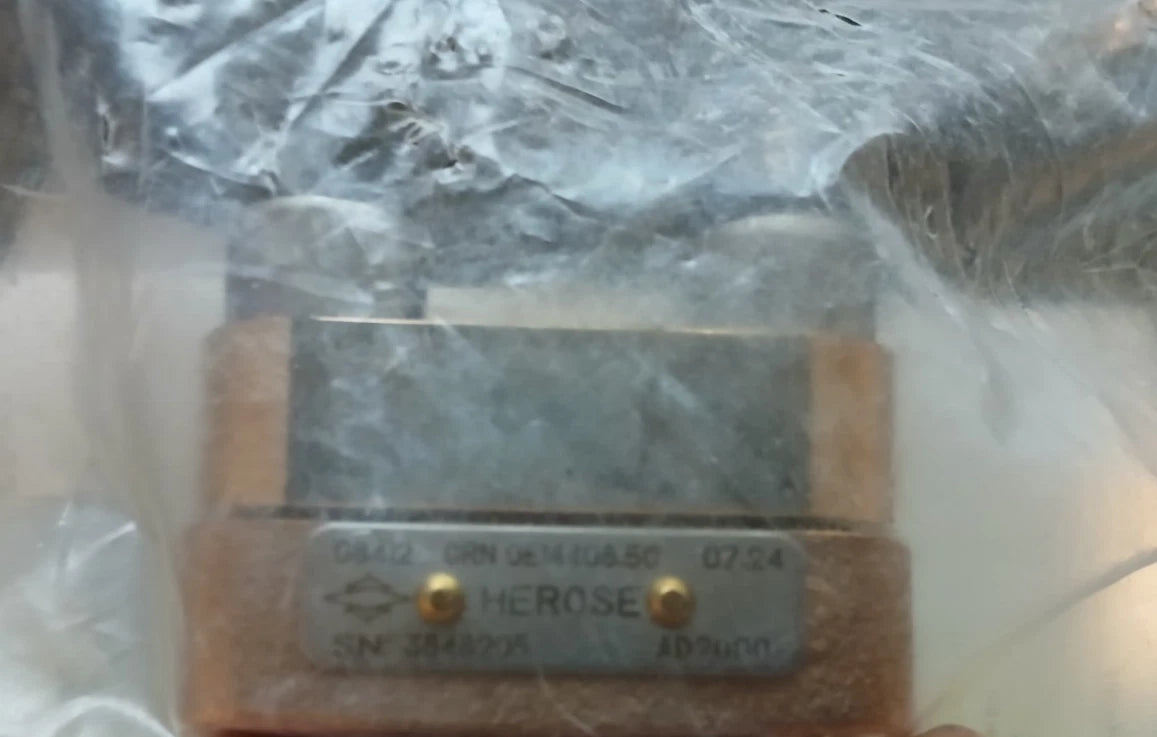

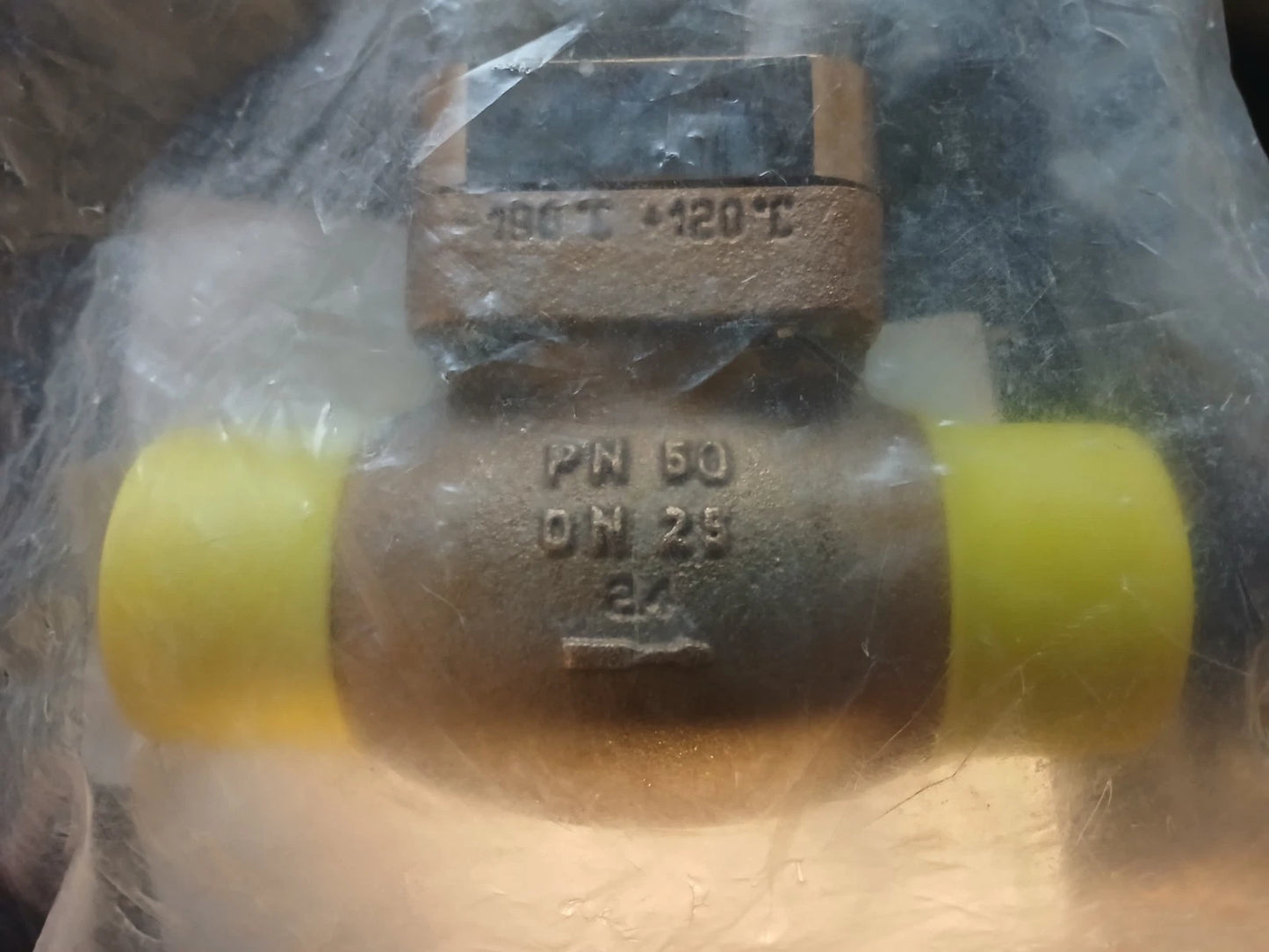

Herose Cryogenic Type 08412 Strainer Bronze body and cap
Herose Cryogenic Type 08412 Strainer Bronze body and cap
Regular price
$429.34 USD
Regular price
Sale price
$429.34 USD
Unit price
per
Low stock: 1 left
Couldn't load pickup availability
- Limited Time Offer
Best Seller
Fast Shipping
Type 08412 - Strainer
Cryogenic-Strainer, PN50
Bronze body and cap with strainer screen mesh size 0.25 mm “cleaned and degreased for oxygen service"
Socket end for copper pipes acc. to DIN EN 12449 or ASTM B88
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Type 08412 - Standard design
Technical data
Nominal size
DN
10
15
20
25
32
40
50
Dimension code
.X.
X=DNRA, Example: valve DN10 for copper pipe RAø12mm, X=1012
Face-to-face dimension
FF
60
85
85
115
115
140
160
Height
H
62
62
65
69
76
89
89
Outside pipe-Ø
RA
dependent on order
Socket depth
b
6
6
8
8
10
13
20
Weight
ca. kg
0.6
0.8
0.9
1.2
1.8
3.1
4.7
Kvs-Value
m³/h
1.5
3.4
6.5
9.5
14.0
21.0
28.0
Cv-Value
gal/min
1.7
3.9
7.5
11.0
16.2
24.3
32.4
| Type 08412 - Standard design | Technical data | |||||||
| Nominal size | DN | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Dimension code | .X. | X=DNRA, Example: valve DN10 for copper pipe RAø12mm, X=1012 | ||||||
| Face-to-face dimension | FF | 60 | 85 | 85 | 115 | 115 | 140 | 160 |
| Height | H | 62 | 62 | 65 | 69 | 76 | 89 | 89 |
| Outside pipe-Ø | RA | dependent on order | ||||||
| Socket depth | b | 6 | 6 | 8 | 8 | 10 | 13 | 20 |
| Weight | ca. kg | 0.6 | 0.8 | 0.9 | 1.2 | 1.8 | 3.1 | 4.7 |
| Kvs-Value | m³/h | 1.5 | 3.4 | 6.5 | 9.5 | 14.0 | 21.0 | 28.0 |
| Cv-Value | gal/min | 1.7 | 3.9 | 7.5 | 11.0 | 16.2 | 24.3 | 32.4 |
